三排柱式回轉支承(13系列)
發布日期：2017-10-31 瀏覽次數：6655

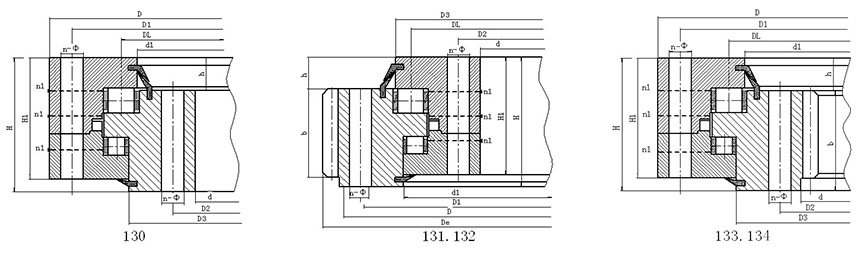

無齒式 外齒式 內齒式
產品簡介：
三排柱式回轉支承(13系列) 具有三個座圈，上下及徑向滾道各自分開,使得每一排滾柱的負載都能確切的加以確定.能夠同承受各種載荷,是四種產品中承載能力較大的一種,軸、徑向尺寸都較大，結構牢固，特別適用于要求較大直徑的重型機械，如斗輪式挖掘機、輪式起重機、港口起重機、鋼水運轉臺及大噸位汽車起重機等機械上。
產品參數：
| 承載曲線圖編號Load Diagram Number |
基本型號
Basic type |
外形尺寸 Configuration |
安裝尺寸 Mounting size |
結構尺寸 Structural size |
齒輪參數 Gear Data |
外齒參數Gear Data |
內齒參數 Int Gear |
齒輪圓周力 Tooth lood |
參考重量 Rete rence weight |
|||||||||||||||
|
無齒式 Toothless DL mm |
外齒式 Ext Toothing DL mm |
內齒式 Int Toothing Dl mm |
D mm |
d mm |
H mm |
D1 mm |
D2 mm |
n mm |
dn1 dn2 mm |
n1 mm |
H1 mm |
h mm |
b mm |
x mm |
m mm |
De mm |
Z |
De mm |
Z |
正火Z 104N |
調質 T 104N |
kg | ||
| 1 | 130.25.500 | 131.25.500 | 133.25.500 | 634 | 366 | 148 | 598 | 402 | 24 | 18 | 4 | 138 | 32 | 80 | +0.5 | 5 | 664 | 130 | 337 | 68 | 5.0 | 6.7 | 200 | |
| 132.25.500 | 134.25.500 | 6 | 664.8 | 108 | 338.4 | 57 | 6.0 | 8.0 | 200 | |||||||||||||||
| 2 | 130.25.560 | 131.25.560 | 133.25.560 | 694 | 426 | 148 | 658 | 462 | 24 | 18 | 4 | 138 | 32 | 80 | +0.5 | 5 | 724 | 142 | 397 | 80 | 5.0 | 6.7 | 224 | |
| 132.25.560 | 134.25.560 | 6 | 724.8 | 118 | 398.4 | 67 | 6.0 | 8.0 | 224 | |||||||||||||||
| 3 | 130.25.630 | 131.25.630 | 133.25.630 | 764 | 496 | 148 | 728 | 532 | 28 | 18 | 4 | 138 | 32 | 80 | +0.5 | 6 | 808.8 | 132 | 458.4 | 77 | 6.0 | 8.0 | 262 | |
| 132.25.630 | 134.25.630 | 8 | 806.4 | 98 | 459.2 | 58 | 8.0 | 11.0 | 257 | |||||||||||||||
| 4 | 130.25.710 | 131.25.710 | 133.25.710 | 844 | 576 | 148 | 808 | 612 | 28 | 18 | 4 | 138 | 32 | 80 | +0.5 | 6 | 886.8 | 145 | 536.4 | 90 | 6.0 | 8.0 | 295 | |
| 132.25.710 | 134.25.710 | 8 | 886.4 | 108 | 539.2 | 68 | 8.0 | 11.0 | 291 | |||||||||||||||
| 5 | 130.32.800 | 131.32.800 | 133.32.800 | 964 | 636 | 182 | 920 | 680 | 36 | 22 | 4 | 172 | 40 | 120 | +0.5 | 8 | 1006.4 | 123 | 595.2 | 75 | 12.1 | 16.7 | 490 | |
| 132.32.800 | 134.32.800 | 10 | 1008 | 98 | 594 | 60 | 15.1 | 20.9 | 487 | |||||||||||||||
| 6 | 130.32.900 | 131.32.900 | 133.32.900 | 1064 | 736 | 182 | 1020 | 780 | 36 | 22 | 4 | 172 | 40 | 120 | +0.5 | 8 | 1102.4 | 135 | 691.2 | 87 | 12.1 | 16.7 | 549 | |
| 132.32.900 | 134.32.900 | 10 | 1108 | 108 | 694 | 70 | 15.1 | 20.9 | 564 | |||||||||||||||
| 7 | 130.32.1000 | 131.32.1000 | 133.32.1000 | 1164 | 836 | 182 | 1120 | 880 | 40 | 22 | 5 | 172 | 40 | 120 | +0.5 | 10 | 1218 | 119 | 784 | 79 | 15.1 | 20.9 | 631 | |
| 132.32.1000 | 134.32.1000 | 12 | 1221.6 | 99 | 784.8 | 66 | 18.1 | 25.1 | 631 | |||||||||||||||
| 8 | 130.32.1120 | 131.32.1120 | 133.32.1120 | 1284 | 956 | 182 | 1240 | 1000 | 40 | 22 | 5 | 172 | 40 | 120 | +0.5 | 10 | 1338 | 131 | 904 | 91 | 15.1 | 20.9 | 710 | |
| 132.32.1120 | 134.32.1120 | 12 | 1341.6 | 109 | 904.8 | 76 | 18.1 | 25.1 | 710 | |||||||||||||||
| 9 | 130.32.1250 | 131.32.1250 | 133.32.1250 | 1445 | 1055 | 220 | 1393 | 1107 | 45 | 26 | 5 | 210 | 50 | 150 | +0.5 | 12 | 1509.6 | 123 | 988.8 | 83 | 22.9 | 31.4 | 1137 | |
| 132.32.1250 | 134.32.1250 | 14 | 1509.2 | 105 | 985.6 | 71 | 26.3 | 36.6 | 1126 | |||||||||||||||
| 10 | 130.32.1400 | 131.32.1400 | 133.32.1400 | 1595 | 1205 | 220 | 1543 | 1257 | 45 | 26 | 5 | 210 | 50 | 150 | +0.5 | 12 | 1665.6 | 136 | 1144.8 | 96 | 22.9 | 31.4 | 1299 | |
| 132.32.1400 | 134.32.1400 | 14 | 1663.2 | 116 | 1139.6 | 82 | 26.3 | 36.6 | 1281 | |||||||||||||||
| 11 | 130.40.1600 | 131.40.1600 | 133.40.1600 | 1795 | 1405 | 220 | 1743 | 1457 | 48 | 26 | 6 | 210 | 50 | 150 | +0.5 | 14 | 1873.2 | 131 | 1335.6 | 96 | 26.3 | 36.6 | 1501 | |
| 132.40.1600 | 134.40.1600 | 16 | 1868.8 | 114 | 1334.4 | 84 | 30.2 | 41.7 | 1471 | |||||||||||||||
| 12 | 130.40.1800 | 131.40.1800 | 133.40.1800 | 1995 | 1605 | 220 | 1943 | 1657 | 48 | 26 | 6 | 210 | 50 | 150 | +0.5 | 14 | 2069.2 | 145 | 1531.6 | 110 | 26.3 | 36.6 | 5682 | |
| 132.40.1800 | 134.40.1800 | 16 | 2076.8 | 127 | 1526.4 | 96 | 30.2 | 41.7 | 1697 | |||||||||||||||
| 13 | 130.45.2000 | 131.45.2000 | 133.45.2000 | 2221 | 1779 | 231 | 2155 | 1845 | 60 | 33 | 6 | 219 | 54 | 160 | +0.5 | 16 | 2300.8 | 141 | 1702.4 | 107 | 32.2 | 44.5 | 2147 | |
| 132.45.2000 | 134.45.2000 | 18 | 2300.4 | 125 | 1699.2 | 95 | 36.2 | 50.1 | 2129 | |||||||||||||||
| 14 | 130.45.2240 | 131.45.2240 | 133.45.2240 | 2461 | 2019 | 231 | 2395 | 2085 | 60 | 33 | 6 | 219 | 54 | 160 | +0.5 | 16 | 2556.8 | 157 | 1926.4 | 121 | 32.2 | 44.5 | 2501 | |
| 132.45.2240 | 134.45.2240 | 18 | 2552.4 | 139 | 1933.2 | 108 | 36.2 | 50.1 | 2461 | |||||||||||||||
| 15 | 130.45.2500 | 131.45.2500 | 133.45.2500 | 2721 | 2279 | 231 | 2655 | 2345 | 72 | 33 | 8 | 219 | 54 | 160 | +0.5 | 18 | 2822.4 | 154 | 2185.2 | 122 | 36.2 | 50.1 | 2786 | |
| 132.45.2500 | 134.45.2500 | 20 | 2816 | 138 | 2188 | 110 | 40.2 | 55.6 | 2731 | |||||||||||||||
| 16 | 130.45.2800 | 131.45.2800 | 133.45.2800 | 3021 | 2579 | 231 | 2955 | 2645 | 72 | 33 | 8 | 219 | 54 | 160 | +0.5 | 18 | 3110.4 | 170 | 2491.2 |
139 |
36.2 | 50.1 | 3067 | |
| 132.45.2800 | 134.45.2800 | 20 | 3116 | 153 | 2488 | 125 | 40.2 | 55.6 | 3079 | |||||||||||||||
| 17 | 130.50.3150 | 131.50.3150 | 133.50.3150 | 3432 | 2868 | 270 | 3342 | 2958 | 72 | 45 | 8 | 258 | 65 | 180 | +0.5 | 20 | 3536 | 174 | 2768 | 139 | 45.2 | 62.6 | 5025 | |
| 132.50.3150 | 134.50.3150 | 22 | 3537.6 | 158 | 2758.8 | 126 | 49.8 | 68.9 | 5099 | |||||||||||||||
| 18 | 130.50.3550 | 131.50.3550 | 133.50.3550 | 3832 | 3268 | 270 | 3742 | 3358 | 72 | 45 | 8 | 258 | 65 | 180 | +0.5 | 20 | 3936 | 194 | 3168 | 159 | 45.2 | 62.6 | 5113 | |
| 132.50.3550 | 134.50.3550 | 22 | 3933.6 | 176 | 3154.8 | 144 | 49.8 | 68.9 | 5661 | |||||||||||||||
| 19 | 130.50.4000 | 131.50.4000 | 133.50.4000 | 4282 | 3718 | 270 | 4192 | 3808 | 80 | 45 | 8 | 258 | 65 | 180 | +0.5 | 22 | 4395.6 | 197 | 3116.8 | 165 | 49.8 | 68.9 | 6508 | |
| 132.50.4000 | 134.50.4000 | 25 | 4395 | 173 | 3610 | 145 | 56.5 | 78.3 | 6449 | |||||||||||||||
| 20 | 130.50.4500 | 131.50.4500 | 133.50.4500 | 4782 | 4218 | 270 | 4692 | 4308 | 80 | 45 | 8 | 258 | 65 | 180 | +0.5 | 22 | 4901.6 | 220 | 4122.8 | 185 | 49.8 | 68.9 | 7438 | |
| 132.50.4500 | 134.50.4500 | 25 | 4895 | 193 | 4110 | 165 | 56.5 | 78.3 | 7308 | |||||||||||||||
注：1、n1為潤滑孔數，均布：油杯M10×1 JB/T79040.1-JB/T7940.2
2、安裝孔n-φ可改用螺孔；齒寬b可改為H-h。
3、表內齒輪圓周力，額定圓周力取其1/2。
4、外齒修頂系數0.1，內齒修頂系數為0.2。
